pTRACK-III - Tracking and Localization System
pTRACK III. generation is a tracking and localization system.
When to use system pTRACK III. generation?
Localization of searching or rescue teams and vehicles during the crisis operation:
- Searching for lost persons
- Search for people after avalanche
- Rescue operations during the nature disasters
- Searching operations after the plane crash
- UXO, explosives and dangerous objects cleaning operations
- Evidence material searching and localization
Main advantages
- Informs about the team movements and history of the objects position, directly on the map application for very easy commanding and debriefing of the searching operation
- Provides a clear information about already searched out area
- Ensures two-way transmission of the warning signal between the command post and the searching team
- MESH network retransmits the interconnection between team members and team leader in rough terrain
- Uses the free map layers formats such Google Maps, OpenStreetMap or maps user-specified
- All data are saved on USB Flash Disk in case of the lost connection
- The system is fully ruggedized for any weather condition application
Consist of
- 1x recharging unit
- 10x localization module
- 1x communication and integration module
- 2x removing memory module (USB Flash Disk)
- Software pTRACK III. generation
Modules application
- Communication and Integration module – KIM
- Team Leader
- Localization module – LOM
- Team members (max. 10)
- SW pTRACK III. generation
- Command post

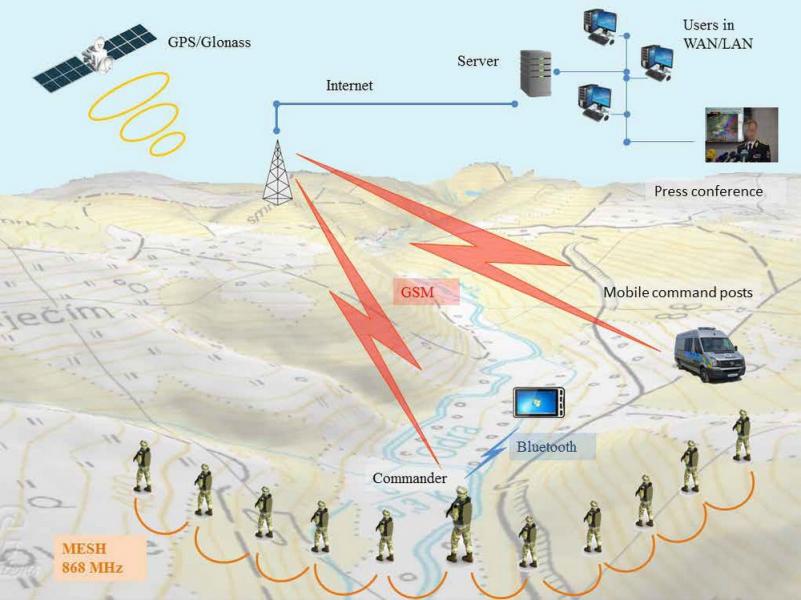

Scheme of pTRACK III. generation system application

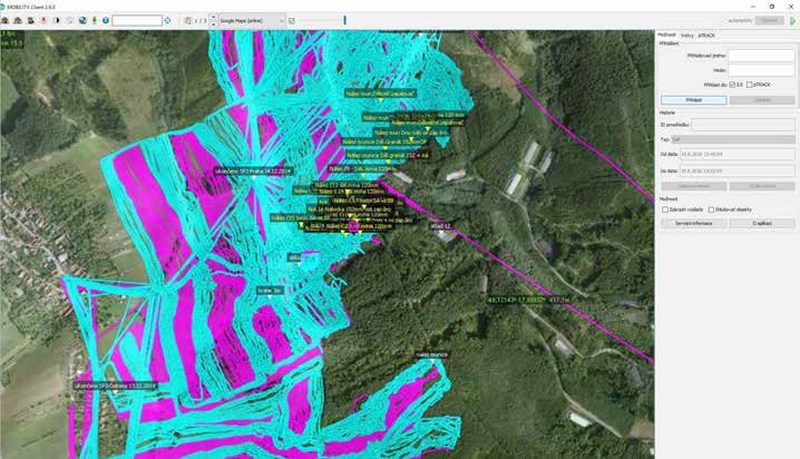

Software pTRACK III. generation
Optional modules
- Bluetooth – connection between KIM and PDA
- PEGAS (TETRAPOL) – connection between KIM and command post
- Radio connection P2P between KIM and command post
- Additional AKU (battery) modules
- GNSS - 2s reloading interval for position data
- Command post unit in ruggedized PELI case
- Easy searching set (1x KIM, 2x LOM, recharging unit) for small areas searching or for canine officer
- Intervention set (5x special designed module KIM, recharging unit) for tactical operations, if there is a small team in wide area coordination requirements
