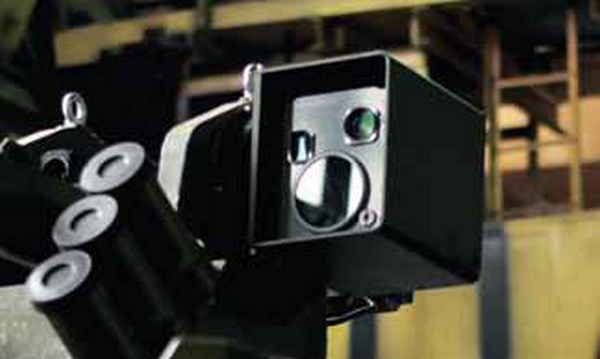

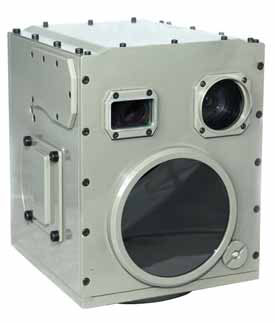

KAZHAN-3К10 Optoelectronic Module
Devices of KAZHAN series are multispectral optoelectronic devices intended for use as a part of surveillance, reconnaissance and fire control systems.

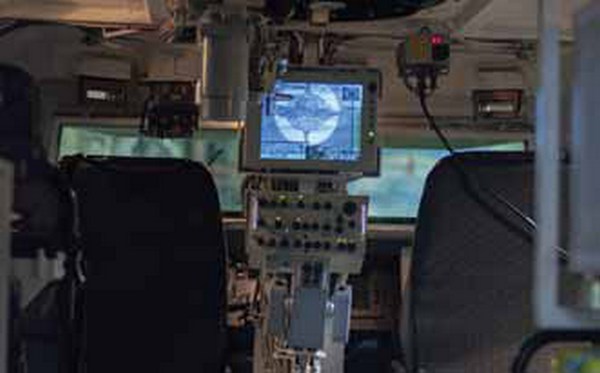

Depending on the model type, KAZHAN devices are used in stationary look-out stations; as a part of autonomous combat modules; on armored vehicles; as a part of shipboard surveillance and fire control systems.
KAZHAN has several detection channels (1-3) in different spectral bands (visible, SWIR, MWIR, LWIR) and a rangefinder channel.
Digital processing unit as a part of OEM KAZHAN provides primary and secondary digital image processing; automatic target detection; target tracking; raw data recording; data transfer to a central observation post in digital and analog form.
KAZHAN devices are equipped with standard interfaces and can be easily integrated with other hardware.
TECHNICAL CHARACTERISTICS
| THERMAL IMAGING CHANNEL | T5 |
| Type of camera | uncooled |
| Detector | 640 х 512 17μ 8-14μ |
| Sensitivity | < 30 mK |
| Focal length | 100 mm |
| Objective F number | F/1.0 |
| Angular field of view (H x V) | 6.2° x 5.0° |
| Recognition / Identification (human) | 2.8/0.7 km |
| Recognition / Identification (vehicle) | 8.0/2.3 km |
| DAYTIME CHANNEL | С1 |
| Type of camera | CMOS |
| Detector | 1/4" CMOS 1280 x 1024 60fps |
| Lens focal length | 3.5 ÷ 150.5 mm |
| Angular field of view (wide) | H : 45.92° х V : 38.2° |
| Angular field of view (narrow) | H : 2.7° х V : 1.8° |
| Sensitivity | chromatic image: 0.5 Lux/F1.4, monochromatic image: 0.05 Lux/F1.4 |
| RANGE FINDER CHANNEL | R2 |
| Maximum distance | 3.5 km |
| Wavelength | 1550 nm, safe for vision, invisible for night vision |
| Beam divergence angle | 0.8 x 0.8 mrad |
| Measuring frequency | 0.5 Hz |
| DIGITAL SIGNAL PROCESSING MODULE | Е1 |
| Formation of the auxiliary video information | aiming marks: textual and graphical |
| Movement detector | automatic detection of moving objects |
| Automatic target tracking | acquisition and tracking of an indicated target |
| Contrast / size / target speed | > 0.4 / 10x10 pixel / <150 pixel/sec |
| Digital image processing | combination of 2 channels by different algorithms |
| PERFORMANCE CHARACTERISTICS | |
| Protection class | IP67, ice protection |
| Operating temperature range | -30°C ÷ +55°С |
| Dimensions (L x W x H) | 229 х 201 х 228 mm |
| Weight | 8 kg |
